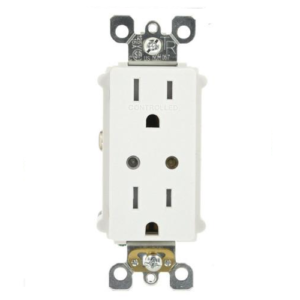

Leviton VRR15-1LZ Vizia Z-Wave 15A In-Wall Outlet

The Vizia RF + family of products captures the essence of “smart” lighting control with its embedded Z-Wave radio frequency technology and stylish form factor that is compatible with Leviton’s hallmark Decora design. Robust features like Zone Control, Scene Control and Timed Events give you one-touch control of your home’s lighting and any Z-Wave enabled device. Vizia RF + Split Duplex Tamper Resistant Receptacle fits into a standard wall box and replaces a regular receptacle. The outlet labeled “controlled” provides local and remote ON/OFF switching of table lamps, floor lamps, holiday lighting and fans. It responds to commands sent from Leviton Vizia RF + Controllers (sold separately). Controlled devices can react through scene commands individually or as part of a scene or zone grouping of lights to provide an elegant and convenient “one-touch” lighting experience. The other outlet is a standard tamper-resistant receptacle that provides constant power. Both outlets are tamper-resistant to meet the 2008 National Electrical Code child safety requirement for new residential construction. They contain an internal shutter mechanism that blocks access to the contacts unless a two-prong plug is inserted, helping ensure children safety.

Features and Benefits

  • Comes with a white face affixed; ivory and light almond faces are also included.
  • Wireless RF technology creates a mesh network for command and control interoperability
  • The Controlled side can be used for wireless ON/OFF control of plugged-in electrical loads up to 15 amps, such as lamps, appliances and electronics
  • Non-controlled side is a tamper-resistant receptacle that provides constant power
  • Shutter mechanism inside the TR receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc.. will be locked out
  • Requires the Vizia RF + Handheld Remote – VRCPG for programming and control of the Vizia RF + System (sold separately)

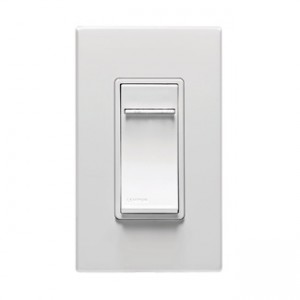

Leviton DD0SR-DLZ Digital/Decora Matching Switch Remote

The Leviton DD0SR-DLZ Digital/Decora Matching Switch Remote for Decora Digital Switches. For 3-way or up to 5 additional location applications. 120/277 VAC. With LED Locator. White face assembled on device, Ivory and Light Almond faces included.

The next generation of lighting control technology is here with the new decor a digital dimmer and digital switch with Bluetooth technology. These innovative Devices work using the decor a digital dimmer & TIMER app that can be easily downloaded to smartphones or tablets and paired to the Leviton dimmer or switch using Bluetooth technology. Decor a digital controls with Bluetooth technology provide local control within a 30 foot range without the need of a hub, gateway or internet connection, bridging the gap between traditional dimmers and whole-house automation systems. Decor a digital dimmer – a powerful device combining the best of Leviton dimmer and TIMER functions with today’s technology. Just use your smartphone or tablet to control, adjust and time lighting for daily activities or to ensure a “lived-in” look while away. Decor a digital switch – users enjoy the combined functions of a standard wall switch and a countdown or Programmable TIMER switch in one attractive device. Using the app to set TIMER functions makes it quick and easy to control lights. Decor a digital dimmer & TIMER app – compatible with apple and Android smartphones or tablets; offers simple, intuitive on-screen menu options to independently control dimmers and switches within a 30 foot range. Decor a digital Devices are ideal for living rooms, bedrooms, kitchens, dining rooms, home offices, outdoors or anywhere full control of lighting is desired.

Features and Benefits

  • Use in 3-way or up to 5 location applications with Decora Digital or Decora Smart devices
  • Dual Voltage 120VAC or 277VAC
  • LED locator light matches main switch
  • Neutral wire is required for installation
  • White face assembled on device, Ivory and light almond face plates included

Leviton DD00R-DLZ Digital/Decora Matching Dimmer Remote

The Leviton DD00R-DLZ Digital/Decora Matching Dimmer Remote is the next generation of lighting control technology  here with the new decora digital dimmer and digital switch with Bluetooth technology. These innovative Devices work using the decora digital dimmer & TIMER app that can be easily downloaded to smartphones or tablets and paired to the Leviton dimmer or switch using Bluetooth technology.

Decora Digital Dual Voltage Matching Dimmer Remote for use with Decora Digital Dimmers in 3-way or up to 5 additional location applications. With LED Locator and Brightness Display. White face assembled on device, Ivory and Light Almond faces included.

Features and Benefits

  • Works with Decora Digital and Decora Smart Dimmers (Z-Wave, Wi-Fi, HomeKit)
  • LED locator and brightness display tracks main dimmer
  • Digital circuitry provides soft fade on/fade off
  • Neutral wire is required for installation
  • White face assembled on device, Ivory and light almond face plates included
  • Wall Plate not included

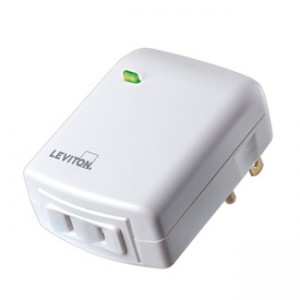

Leviton DZPD3-2BW Decora Smart Z-Wave Plug-In Outlet Dimmer

The Leviton DZPD3-2BW Decora Smart Z-Wave Plug-In Outlet Dimmer, ideal for any residential setting that needs remote dimming of table and floor lamps up to 300W, including Incandescent, LED, Incandescent and Compact Fluorescent loads.  It uses the latest generation of Leviton’s dimming technology for smart lighting control, engineered to function with extremely sensitive, low-wattage light sources, such as a strand of holiday lights, ensuring LEDs do not glow when off.  The DZPD3 is fully compatible with Wink, SmartThings and Amazon Echo (requires Wink or SmartThings Hub), as well as all other certified Z-Wave controllers, security systems, gateways, and hubs. Attach one or multiple DZPD3 devices to these controllers to provide automation and remote access. The button on the front of the DZPD3 is utilized for including/excluding the device in a Z-Wave network as well as manual on/off control of the connected device.

Schedule or dim your plug-in lamps from anywhere. Automate plug-in lamps and holiday lighting without any new wiring – simply plug in the device and enroll it to the compatible Z-Wave hub.   In addition to universal lighting support, the DZPD3 features two-way feedback, is scene capable, and is Z-Wave Plus certified, ensuring the latest technology, increased communication range, network wide inclusion, and over the air updates.  Also features transient surge suppression built-in. The DZPD3 is rated for CFL and LED loads up to 100W; incandescent up to 300W. 120V, 60Hz, neutral required. The Leviton DZPD3 is universally supported by most home automation and security systems with Z-Wave energy management technology.  Leverage the entire Decora Smart with Z-Wave family including in-wall and plug-in devices for a complete system. With a compatible hub like Samsung SmartThings or Wink, you can also utilize Amazon Alexa voice control.

Item Description

Decora Smart Plug-in Dimmer with Z-Wave Plus Technology

Features and Benefits

  • Works with Amazon Alexa for voice control (hub required, Alexa device and hub sold separately)
  • 100W Dimmable LED/CFL, 300W Incandescent
  • 5 Year Limited Warranty
  • Z-Wave Plus Certified with manual on/off control
  • Transient surge suppression built-in

DZPD3_-_Installation_Guide

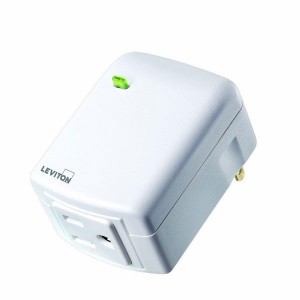

Leviton DZPA1-2BW Decora Smart 15A Z-Wave Plug-In Outlet

The Leviton DZPA1-2BW Decora Smart 15A Z-Wave Plug-In Outlet is ideal for any residential setting that needs remote ON/OFF switching of appliances, motor loads up to 1/2 HP, or freestanding lights up to 1800W, including Incandescent, LED, Fluorescent and Compact Fluorescent loads.  It uses the latest generation of Leviton’s dimming technology for smart lighting control, engineered to function with extremely sensitive, low-wattage light sources, such as a strand of holiday lights, ensuring LEDs do not glow when off.  The DZPA1 is fully compatible with Wink, SmartThings and Amazon Echo (requires Wink or SmartThings Hub), as well as all other certified Z-Wave controllers, security systems, gateways, and hubs. Attach one or multiple DZPA1 devices to these controllers to provide automation and remote access.  Provides 15A, 120 VAC NEMA 5-15R grounding receptacle for use with a wide variety of lamps and appliances. The button on the front of the DZPA1 is utilized for including/excluding the device in a Z-Wave network as well as manual on/off control of the connected device.
Application: Typical applications include switching of fluorescent lamps, portable fans, kitchen appliances, indoor fountains and more.  In addition to universal lighting support, the DZPA1 features two-way feedback, is scene capable, and is Z-Wave Plus certified, ensuring the latest technology, increased communication range, network wide inclusion, and over the air updates.  Also features transient surge suppression built-in. The DZPA1 is rated for CFL and LED loads up to 600W; incandescent, halogen, fluorescent up to 1800W. 120V, 60Hz, neutral required. The Leviton DZPA1 is universally supported by most home automation and security systems with Z-Wave energy management technology.  Leverage the entire Decora Smart with Z-Wave family including in-wall and plug-in devices for a complete system. With a compatible hub like Samsung SmartThings or Wink, you can also utilize Amazon Alexa voice control.

Item Description

15 Amp Decora Smart with Z-Wave Plus Technology Plug-in Outlet

Features and Benefits

  • Works with Amazon Alexa for voice control (hub required, Alexa device and hub sold separately)
  • ON/OFF switching of appliances, motor loads up to 1/2 HP, or freestanding lights up to 1800W, including LED, Incandescent, Inductive Voltage, Fluorescent and Compact Fluorescent loads
  • 5 Year Limited Warranty
  • Z-Wave Plus Certified with manual on/off control
  • Transient surge suppression built-in

Leviton DZPA1-Installation Guide

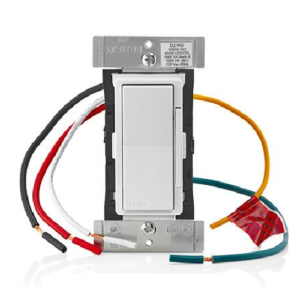

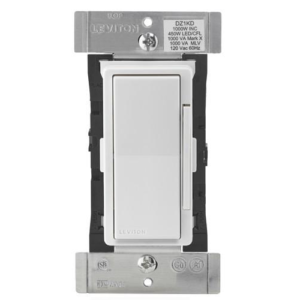

Leviton DZ1KD-1BZ Decora Smart Z-Wave 1000W Dimmer

The Leviton DZ1KD-1BZ Decora Smart Z-Wave 1000W Dimmer is designed for residential lighting applications. It uses the latest generation of Leviton’s dimming technology for smart lighting control, engineered to function with extremely sensitive, low-wattage light sources, such as a single LED bulb in a hallway or a strand of holiday lights, ensuring LEDs do not glow when off. The DZ1KD is fully compatible with Wink, SmartThings and Amazon Echo (requires Wink or SmartThings Hub), as well as all other certified Z-Wave controllers, security systems, gateways, and hubs. Attach one or multiple DZ1KD devices to these controllers to provide automation and remote access.
In addition to universal lighting support, the DZ1KD features two-way feedback, is scene capable, and is Z-Wave Plus certified, ensuring the latest technology, increased communication range, network wide inclusion, and over the air updates.  Includes 49 different fade rates and features user pre-sets for powering on and minimum brightness. Also features transient surge suppression built-in. Can be used in 3-way, multi-way circuit by using matching DD00R-DL remote dimmer. The UL required air gap switch disconnects power from load locally. It is concealed during normal operation and is accessible without moving the wall plate.

Item Description

1000W Decora Smart with Z-Wave Plus Technology Dimmer

Features and Benefits

  • Works with Amazon Alexa for voice control (hub required, Alexa device and hub sold separately)
  • 450W Dimmable LED/CFL, 1000W Incandescent and Fluorescent, Z-Wave Plus Certified
  • 5 Year Limited Warranty
  • White and Light Almond paddle faces included, wall plate and other colors sold separately
  • Multi-Location achieved using up to 4 remote units, DD00R-DL
  • Hot, neutral, load and ground required for installation and traveler for multi-switch applications optional.

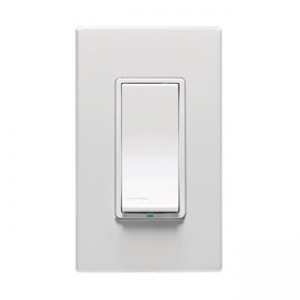

Leviton DZ15S-1BZ Decora Smart 15A Z-Wave Switch

The Leviton DZ15S-1BZ Decora Smart Z-Wave Switch is a Z-Wave Plus enabled universal switch designed for residential lighting applications. It uses the latest generation of Leviton’s technology for smart lighting control, engineered to function with extremely sensitive, low-wattage light sources, such as a single LED bulb in a hallway or a strand of holiday lights, ensuring LEDs do not glow when off.  The DZ15S is fully compatible with Wink, SmartThings and Amazon Echo (requires Wink or SmartThings Hub), as well as all other certified Z-Wave controllers, security systems, gateways, and hubs. Attach one or multiple DZ15S devices to these controllers to provide automation and remote access.

Application: Supports LED and CFL technologies up to 600 Watts with support for legacy incandescent lighting loads up to 1800 Watts, along with support for Fluorescent, Resistive, and Motor loads. In addition to universal lighting support, the DZ15S features two-way feedback, is scene capable, and is Z-Wave Plus certified, ensuring the latest technology, increased communication range, network wide inclusion, and over the air updates.  Also features transient surge suppression built-in. Can be used in 3-way, multi-way circuit by using matching DD0SR-DL or coordinating DD0SR-1 remote switch.

Item Description

15A Decora Smart with Z-Wave Plus Technology Switch

Features and Benefits

  • Works with Amazon Alexa for voice control (hub required, Alexa device and hub sold separately)
  • 600W LED/CFL, 1800W Incandescent, Z-Wave Plus Certified
  • 5 Year Limited Warranty
  • White and Light Almond paddle faces included, wall plate and other colors sold separately
  • Multi-Location achieved using DD0SR-1 (coordinating) or DD0SR-DL (matching with LED indicator)
  • Hot, neutral, load and ground required for installation and traveler for multi-switch applications optional.

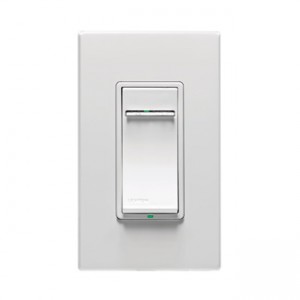

Leviton DZ6HD-1BZ Decora Smart Z-Wave 600Watts Dimmer Switch

The Leviton DZ6HD-1BZ Decora Smart Z-Wave Dimmer Switch uses the latest generation of Leviton’s dimming technology for lighting control products. It supports dimmable LED and CFL technologies up to 300 Watts along with support for legacy incandescent lighting loads up to 600 Watts. The DZ6HD is Z-Wave Plus certified, ensuring the latest technology, increased communication range, network wide inclusion, and over the air updates. The highly advanced design features two-way feedback, is scene capable, and is supported by security systems, hubs, and gateways that are Z-Wave enabled, providing remote access and scheduling abilities. Featuring an all new appearance, the true rocker allows users to push the top of the paddle to turn on or the bottom to turn off. Additionally, the dim/brighten bar is conveniently located along the right hand side of the paddle, ensuring ease of use with the state-of-the-art device. Vanishing LEDs on the left hand side of the paddle show current and target light level with real-time feedback.For the most professional and cleanest installation, pair the device with an optional Leviton screwless wallplate.

  • Works with Amazon Alexa for voice control (hub required, Alexa device and hub sold separately) as well as Vizia RF+ systems
  • Compatible with Wink and SmartThings hubs
  • Z-Wave Plus Certified
  • Rated for dimmable CFL and LED loads up to 300W
  • Rated for incandescent loads up to 600W
  • Multi-location (3-way) dimming is achieved using up to 4 remote units, DD00R-DL.
  • Wall Plate not included
  • Light Almond faceplate included
  • Requires neutral wire

Leviton DZ6HD- Installation Guide
