Honeywell Home L5210 Security Alarm Kit with WiFi & Zwave


L5210 Lynx Touch Security Alarm Kit with Wi-Fi and Z-Wave Modules

SKU: L521WF-KT8-Zwave Category: Tags: , , , ,

Share this product


The Honeywell Home Lynx Touch L5210 Lynx Touch Security Control Panel all-in-one home and business control system features a crystal clear, full-color 4.3″ touchscreen with graphic icons and intuitive prompts for easy operation. It features live video on demand, Z-Wave® automation capabilities, advanced alarm communications, garage door notification and control, tornado alerts for U.S. and Canadian residents, and remote software upgradeability.

The Wi-Fi® module (SOLD SEPARATELY HERE (unless included in this kit) offers the lowest cost alarm communications (including two-way voice) and remote services solution – saving installation time and reducing monthly operating costs.

The Z-Wave connectivity module lets you integrate security, lighting, locks, thermostats, water valves and more – for local and remote control. With Resideo Total Connect Remote Services, users can control security, thermostats, lighting, locks, receive alerts and more from wherever they are with most smartphones, tablets and computers.

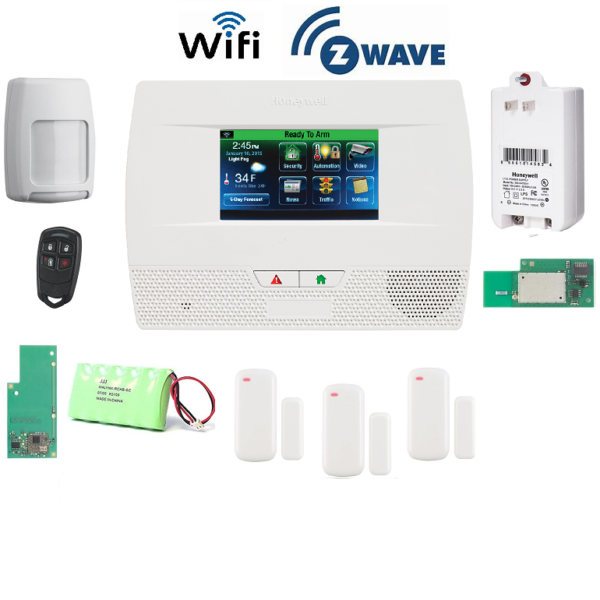

Kit Includes:

1-L5210 Lynx Touch Control Panel/Keypad

3-Honeywell 5800Mini Door/ Window Contact

1-5800Pir-Res Motion Sensor

1-5834-4 Wireless 4 Button Keyfob


1-Wi-Fi Module

1-Battery Backup


System Features

  • 4.3″ color graphic touchscreen
    – Resolution 470 x 256 pixels
    – 16.7 million colors
    – Intuitive easy-to-use touchscreen interface
    – Words and icons are large, clear and easy to read/understand
    – Menu driven navigation
    – Quick, accurate programming
    – Two dedicated keys – for easy access to the home screen and emergency functions
  • On-premises video viewing
    – Integrated video: System supports one camera, which can be displayed on the touchscreen. Works with compatible Resideo Total Connect Video products only
  • Wi-Fi support (Wi-Fi Module SOLD SEPARATELY HERE (unless included in this kit)
    – Alarm communication to AlarmNet® and lifestyle messaging via the user’s Internet connection
    – Two-way voice
  • Integrated Z-Wave provides control and integration of:  (Z-Wave Module SOLD SEPARATELY HERE (unless included in this kit
    – Thermostats
    – Water valves
    – Door locks
    – Sirens
    – Lighting
    – Scenes, schedules and rules
    – Local, automatic and remote control via Resideo Total Connect
  • Push/Pull content through Resideo   Total Connect
    – Weather available in Fahrenheit or Celsius (one day or five day forecasts)
    – Emergency alerts (tornadoes) – requires Resideo Total Connect with Information Services Package
    – Dealer/central station messages (payments due, sales opportunities, community news)
    – End-user requests for sales or service
  • Advanced Protection Logic technology – With APL enabled, the alarm can be reported even if the system is tampered with during the entry and communications delay times. APL can be selected when using Honeywell Home LTE and IP communicators.
  • Voice announcement of system and zone status
  • Family message center (for user recorded messages)
  • Works with Resideo Total Connect
    – Remote control of security, garage doors and Z-Wave devices
    – Selected event notifications
  • Voice chime by zone
  • 10 selectable chime tones
  • Automatic stay arming
  • 32 user codes (Installer, Master, plus 30 Secondary, including Duress and Guest)
  • Three panic functions
  • Wall or desk mount
  • Viewable event log stores up to 128 events
  • Exit error feature (detects difference between an actual alarm and exit alarm caused by leaving a door open after the exit delay expires)
  • Case tamper
  • RF jam detection
  • Quick Exit feature provides users with an exit delay after arming their system
  • Night Stay and Silent Exit modes
  • Hinged cover for easy installation
  • Real-time clock display
  • Garage Door Function
    – Up to three garage doors per system
    – Unique garage door icon
    – View and monitor garage door status
    – Auto-secure feature
    – Remote notification via Resideo   Total Connect
    – Garage door control*
       – Automatically control door via scenes, rules and schedules
       – Locally open/close garage door from touchscreen
       – Remotely open/close garage door via Resideo Total Connect

Zones and Devices

  • One hardwired zone
  • Wireless zones – 64 programmable plus 16 dedicated to keyfobs
  • Supports wireless bidirectional keypads
  • Internal LTE radio option
  • Wi-Fi module option
  • Programmable trigger output

** Requires 5877GDPK, consisting of the 5877 Relay Receiver and Z-Wave Strobe/Sounder. Not compatible with certain garage doors and garage door openers. Garage door control must have working entrapment protection. See installation instructions for details.

Integrated Z-Wave®Support (With Optional Z-Wave Module(unless included in this kit)

  • Up to three thermostats (HVAC system or battery powered) with 1°F and 0.5°C set points
  • Four door locks – Jammed locks reported to Resideo Total Connect Remote Services
  • 40 devices (lights, switches and lamp modules)
  • 20 scenes
  • 20 rules (event-based actions)
  • 20 schedules (time-based actions)
  • Sunrise/sunset lighting control
  • Randomized lighting control

Wi-Fi (With Optional WiFi Module (Unless included with this kit)

  • IEEE 802.11 B/G/N radio
  • Supports alarm reporting
  • Supports two-way voice


  • LTE radio – protocol supports
    AT&T, Verizon and Rogers networks
  • ADEMCO® Contact ID Reporting (four or ten digit account numbers)
  • SIA Format Reporting
  • Internet central station communication with L5100-WIFI (NOT INCLUDED Unless included in this kit)
  • Selection for primary communication path when using dual paths
  • Touch activated radio registration
  • Radio signal strength display
  • Two-way voice communication over IP/Wi-Fi, LTE
  • Resideo Total Connect ready

Alarm Output

  • Built-in 85 dB sounder with voice siren
  • Steady output for burglary/panic
  • Temporal pulse output for fire and carbon monoxide alarms
  • Long range radio/audio alarm verification


  • Options stored in EEROM
  • Can be uploaded, downloaded or controlled via IBM-compatible computer using Compass Downloader software and specified modem or via capable LTE, Wi-Fi or IP communications module
  • Intuitive programming interface reduces time and mistakes
  • Programming options selected from allowable list
  • Contextual options, defaults and pre-fills for faster set-up


  • UL 985, UL 1023, UL 1635
  • CAN/ULC-S545, CAN/ULC- Subject-C1023
  • ANSI/SIA CP-01-2010

System Power

  • Primary power: plug-in power supply, 110VAC to 9VDC, 2.7A output 300-04705V1 or 300-04065V1 (300-04063V1 in Canada)
  • Four or 24-hour backup battery: rechargeable nickel-metal hydride battery pack rated at 7.2Vdc
  • Operating temperature:
    32°F – 122°F (0°C – 50°C)

Dimensions (approx.)
6.1″ H x 8.5″ W x 1.71″ D
(15.5cm H x 21.6cm W x 4.4cm D)

NOTE: Total Connect service is a paid monthly service as part of your Alarm Monitoring Plan or as a DIY service plan.  See our plans
