Description
The Honeywell Home VISTA family of products is among the most widely recognized and reliable brands in the industry with the largest security system install base in the world. The versatile VISTA-20P offers options to send alarm signals, upload/download capability, and remote services via IP, 4G or LTE communications, improving the speed at which information can be delivered to and from the control panel. This maximizes system longevity and reduces service calls and future upgrade costs.
The Honeywell Home Vista 20P Alarm Kit with 6150RF Keypad has the broadest array of residential hardwired or wireless sensor zone options that protect life and property, creates awareness and convenience with environmental options like thermostat, water shut-off and lighting control, as well as advanced functions like audio control via Denon. VISTA also offers fixed-English, custom Alpha or touchscreen keypad displays, two-wire smokes detectors, connected home support through Tuxedo Touch® with the ability to customize system actions, and events using scene control.
- IP alarm reporting and uploading/ downloading via supported communicators
- Supports four graphic touchscreen keypads
- Eight on-board hardwired zones or 15 with Zone Doubling feature
- Two low-current on-board trigger outputs
- Event Log viewable at system keypad with time/date stamp
- 48 system user codes assignable to either partition
- Two independent partitions plus a common partition
- 16 output devices
- Four configurable zone types allows the installer to create custom zone types by assigning all zone attributes
- Works with Sentrol CleanMe maintenance signal supporting four-wire and up to 16 two-wire smokes
- Multiple actions on output devices depending on system state
- Built-in phone line cut monitor with programmable delay and annunciation options

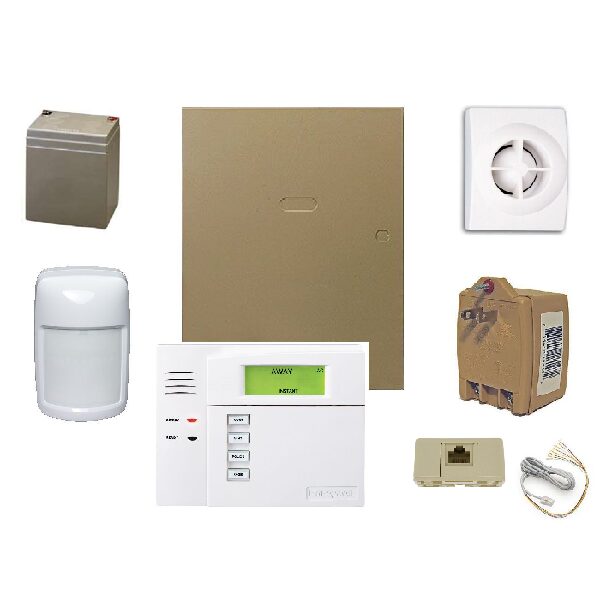

- Includes: VISTA-20P control, 6150RF keypad, Motion Detector PIR, WAVE2 2-tone sounder, 467 battery, 621 RJ31X Telephone Jack, 620 Telco Connector Cord, and Transformer.
- 6150RF is a Deluxe Numeric Keypad with built in RF Transceiver for adding wireless sensors
- Motion Detector is a Passive Infrared Motion Detector
- WAVE2 is an indoor 106 DB two-tone indoor sounder
- 467 is a 12V 4AH Sealed Lead Acid Battery
- 621 is a RJ31X Telephone Jack
- 620 is Telco Connector Cord
