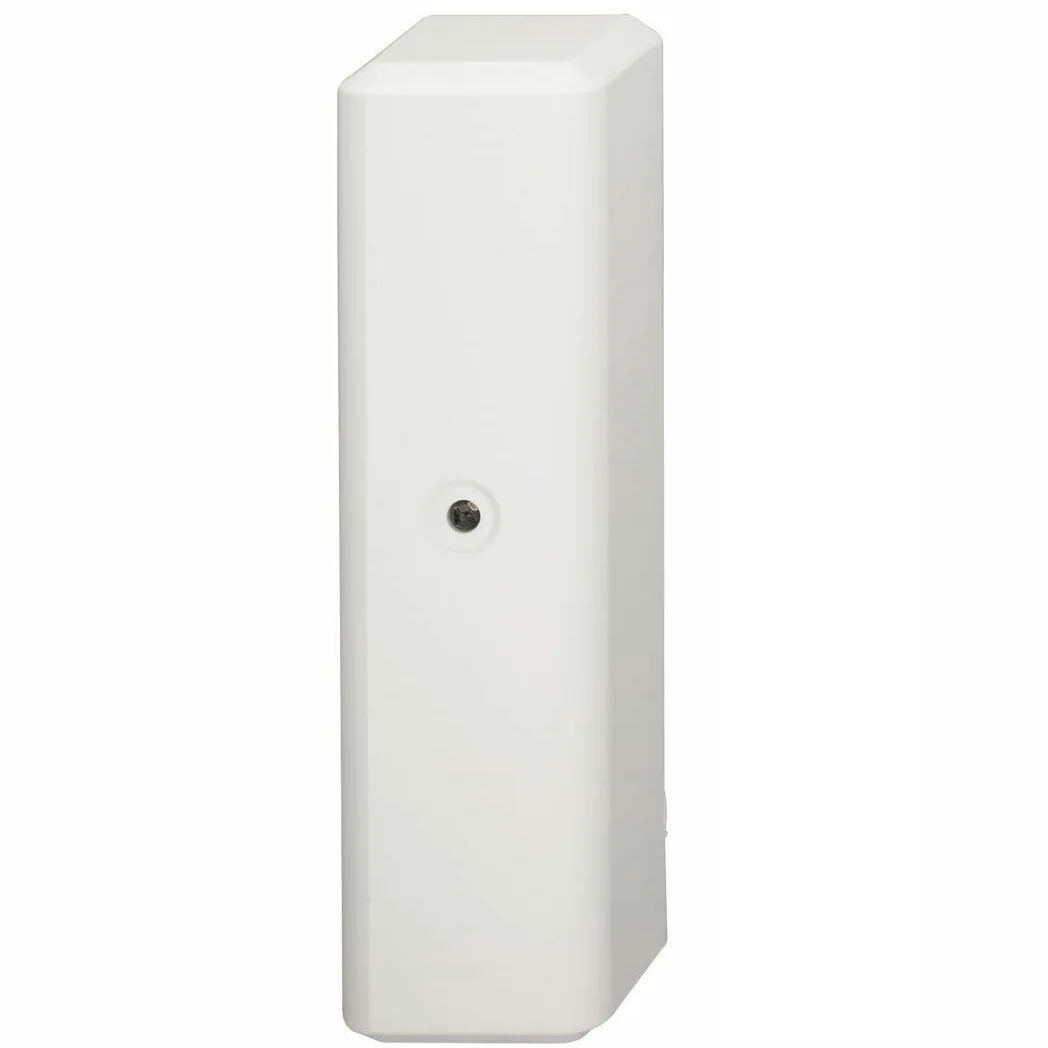

Ecolink TX-E401 Garage Door Tilt Sensor- Interlogix 319.5MHz Compatible

Description

The EcolinkTX-E401 Garage Door Tilt Sensor from Interlogix® provides intrusion detection for garage structures. This sensor can be mounted on top of any garage door and allows for quick and easy installation without the need to align a magnet. The Interlogix TX-E401 Garage Door Tilt Sensor will transmit an open and close signal to the panel each time the garage door is opened or closed. When the alarm panel is armed, if the garage door opens to a forty-five degree angle, the sensor goes into an alarm condition that turns on the siren and initiates a call to the central monitoring station. The TX-E Series Garage Door Tilt Sensor also features a slow loop response which eliminates false alarms triggered by garage door movement due to wind.

ECOLINK is the manufacture of this product for Interlogix and is now selling them under their own brand ECOLINK rather than the Interlogix brand since interlogix is closed down.  SAME PRODUCT STILL WORKS WITH INTERLOGIX 319.5 MHz panels.

Standard Features:

• Field proven wireless technology
• Case tamper
• Extended operating temperature range
• Slow loop response that eliminates false alarm due to wind
• Replaceable battery with up to 5 years of battery life (based on usage)
• 2 year warranty

Specifications:

Compatibility: Interlogix Learn-Mode panels and receivers

Frequency: 319MHz (Crystal based)

Battery: CR123A

Battery Life: 5 years, typical

Operating Temperature: -22°F (-30°C) to 120°F (49°C)

Operating Humidity: 5-95% non condensing

Weight: 2.0 oz.

Dimensions: (WxHxD) 3.5 x 1.0 x 0.87 in. (8.89 x 2.54 x 2.20 cm)

Color: White

Approvals: FCC/IC
